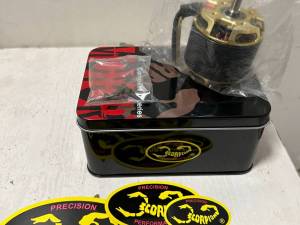

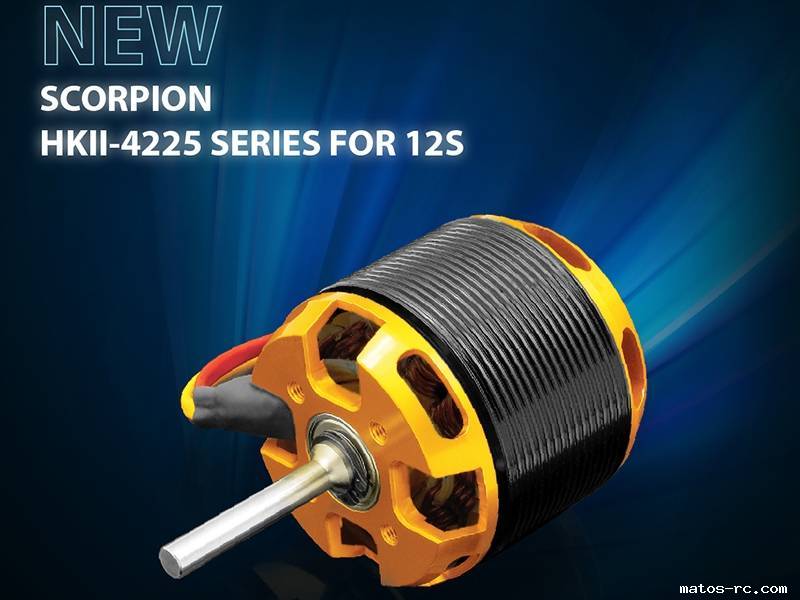

Scorpion HKII-4225-610KV Limited Edition, 290 €

Scorpion HKII-4225-610KV Limited Edition

* NEUF EN BOITE

* JAMAIS UTILISÉ

* CONNECTEURS OR NON SOUDÉS, NON INCLUS



Expedition colissimo recommandé 10€

PRIX FERME

----------------------------------------------------------------------------

Specifications

Stator Diameter 42 mm (1.65 in)

Stator Thickness 25 mm (0.98 in)

No. of Stator Arms 12

No. of Stator Poles 10

Motor Wind 10 Turn Delta

Motor Wire 1-Strand 1.4 mm

Motor Kv 610KV RPM/Volt

No-Load Current (Io/10V) 2.33 Amps

Motor Resistance (RM) 0.013 Ohms

Max Continuous Current 80 Amps

Max Continuous Power 3550 Watts

Weight 393 Grams (13.77 oz)

Outside Diameter 52.3 mm (2.06 in)

Shaft Diameter 5.98 mm (0.24 in)

Body Length 51.50 mm (2.03 in)

Overall Shaft Length 91.5 mm (3.60 in)

Max Lipo Cell 12s

Max Peak Current 130 Amps (5 seconds)

Max Peak Power 5770 Watts (5 seconds)

Motor Timing 5deg

Drive Frequency 8kHz
